Processing service
High-Precision Coil Slitting
Dream Metplast's high-precision slitting line converts wide steel coils into narrower strips while maintaining controlled width, tension and material handling through the process.
- Line Speed
- 220 m/min
- Thickness
- 0.2–3.0 mm
- Maximum Width
- 1650 mm
- Slit Width Accuracy
- ±0.05 mm
- Materials
- PPGI, GPSP, GP, SS, CR, GI
Process overview
What this process does.
Slitting is a longitudinal coil-processing operation in which a wide master coil passes through circular knives and is divided into narrower strips before being recoiled.
Process suitability and any specification not published on this page are confirmed against the submitted material and required output.
Documented equipmentOperating sequence
From master coil to controlled slit output.
A stage-by-stage view of the documented equipment and the technical information needed to confirm the service scope.
The slitting line combines material positioning, tension control, longitudinal cutting and recoiling in one connected operation. Each stage supports stable strip movement while the master coil is converted into narrower widths.
The supplied line documentation identifies dedicated systems for coil loading, shaft support, scrap handling, knife and spacer changes, speed coordination and controlled output winding.
Published scope only. Final suitability follows technical review.
01
Load and support
A coil car supports loading at the line, while the hydraulic support arm holds the decoiler shaft end.
02
Control strip tension
The belt bridle system supports tension control for colour-coated and surface-sensitive material.
03
Slit and manage scrap
The exchange stand supports knife and spacer setup, with automatic scrap winding on both sides of the line.
04

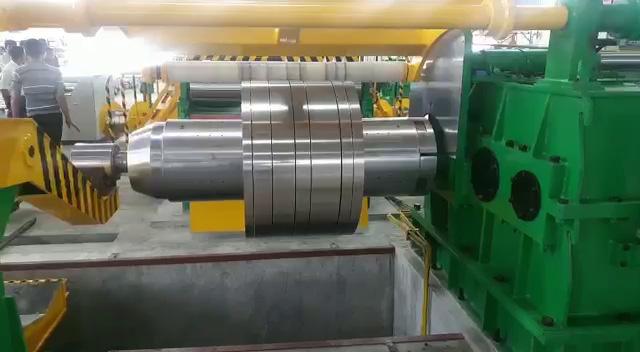

Recoil the output
The recoiler uses build tension to support tight, controlled winding of the processed strips.
Equipment and scope
Documented line features.
08Published equipment and process entries
Automatic scrap winder
Recoiler with build tension
Slitter exchange stand
Coil car
Hydraulic support arm
Front & rear loop bridge
Servo motor control
Supportive features
Supporting systems connected to slitting.
Integrated equipment supports surface protection, controlled tension and stable coil movement from line entry through recoiling.
Supporting service
PVC Film Laminator
Applies surface-protection film to both sides of surface-sensitive material before downstream handling.
View PVC lamination
Integrated slitting-line equipment
Belt Bridle System for Colour-Coated Material
Supports controlled strip tension and scratch-free handling for colour-coated and other surface-sensitive material.
View belt bridle system
Supporting capability
Coil Handling & Recoiling
Connects coil positioning and line movement with build-tension recoiling for controlled output winding.
View coil handling

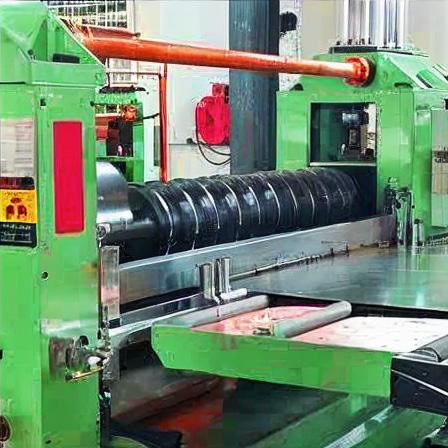

Facility views
Inside the process.
Equipment views from the supplied facility documentation, shown to provide practical context for the service scope.
