JH21 · C-frame
Installed machine ratings listed in the presentation: 45, 60, 63, 110, 160 and 250 TON.
Processing service
Press shop
The sheet metal division brings press operations into an integrated coil-to-component workflow at Unit-4 in Dadri, Gautam Buddh Nagar.
- Machine range in presentation
- 40–650 tons
- Running in presentation
- 50 machines
Process overview
What this process does.
Sheet metal component manufacturing with C-frame and H-frame press machines.
Process suitability and any specification not published on this page are confirmed against the submitted material and required output.
Documented equipmentOperating sequence
Connect sheet preparation with component forming.
A stage-by-stage view of the documented equipment and the technical information needed to confirm the service scope.
The press shop extends the coil-to-component workflow into formed sheet metal parts at the Dadri facility. Its documented equipment includes JH21 C-frame and JB36 H-frame presses.
Published press ratings span 40 to 650 tons, including double-crank H-frame equipment. The correct press and tooling scope are reviewed against the component drawing, material and thickness.
Published scope only. Final suitability follows technical review.
01
Review the component
The drawing, revision, material, thickness and quantity define the technical review.
02
Assess press and tooling
The requirement is checked against the documented C-frame and H-frame equipment range.
03
Form the component
The confirmed press operation converts prepared sheet material into the required component form.
04
Connect downstream work
Formed parts can move into the documented welding, fabrication or assembly scope as required.
Equipment and scope
Documented line features.
03Published equipment and process entries
JB36 · H-frame
Double-crank press machines rated at 315 and 650 TON.
Component requirements
Share the component drawing, material specification, thickness and quantity so our team can review the press and tooling requirements.

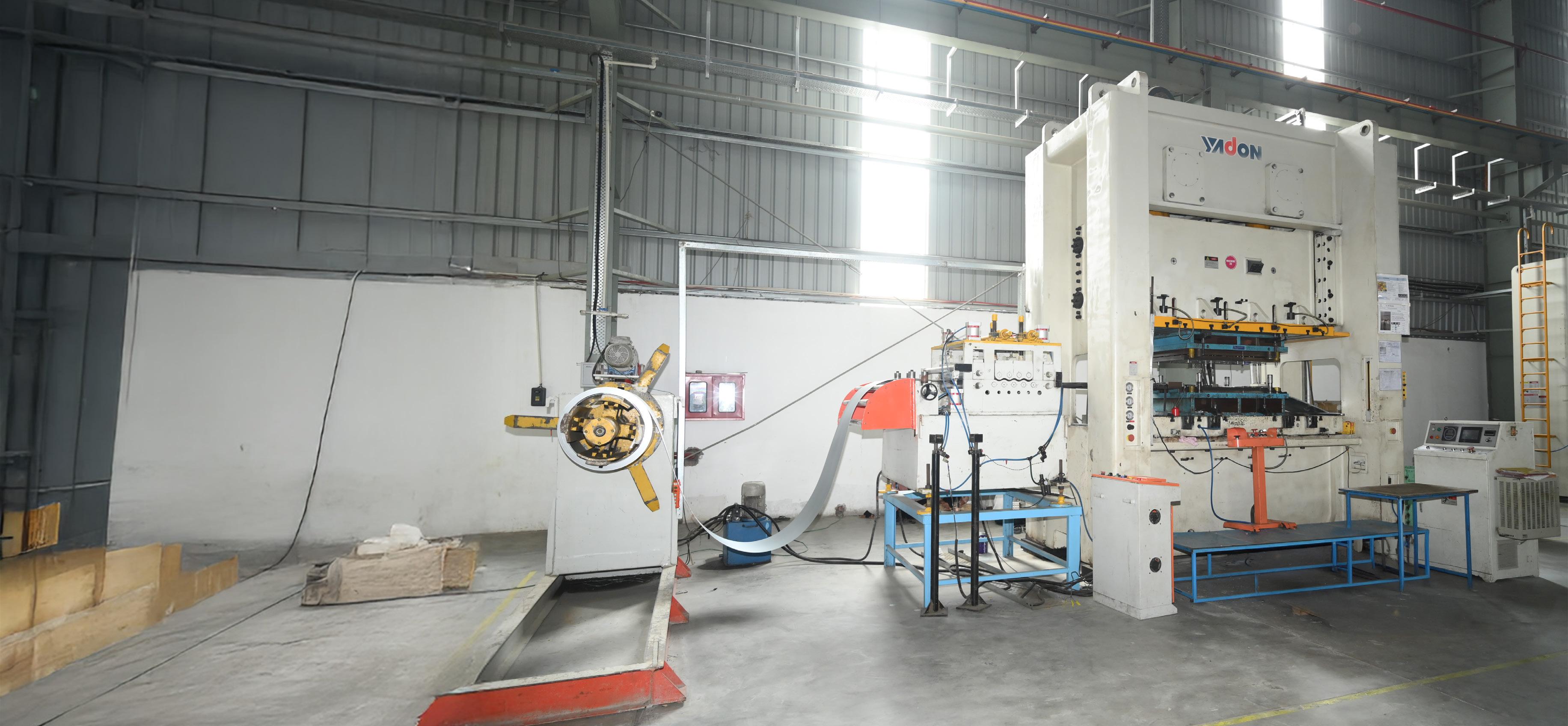

Facility views
Inside the process.
Equipment views from the supplied facility documentation, shown to provide practical context for the service scope.
